Modular Workstation Crane Solutions for Efficient Material Handling

Système de grue légère KRC KBK

KRC KBK light crane systems provide flexible overhead lifting solutions for repetitive material handling, workstation logistics, assembly lines, and production cells. The system includes aluminum alloy track systems, flexible steel KBK track systems, and rigid track systems, supporting different requirements for lightweight handling, modular expansion, larger span layouts, and higher load capacity.

À propos de l'usine KRC

Fondée en 1998 à Luoyang, Karui Lifting Equipment Co., Ltd. (KRC) est un leader des grues intelligentes de style européen, en collaboration avec ABUS, premier fabricant allemand de grues. Avec plus de 20 technologies brevetées et des qualifications de classe A, KRC contribue au Manuel de conception des grues et aux normes chinoises relatives aux grues. Notre usine a produit une grue bipoutre record de 360 tonnes et de 34,5 m de portée, offrant des solutions sur mesure à des secteurs tels que la fabrication, l'automobile et l'entreposage.

Maximum capacity: 2000 kg
Maximum span: 10 m
Aluminum, flexible steel, and rigid track options
Modular system design for future expansion
Customized design, manufacturing, installation, and support

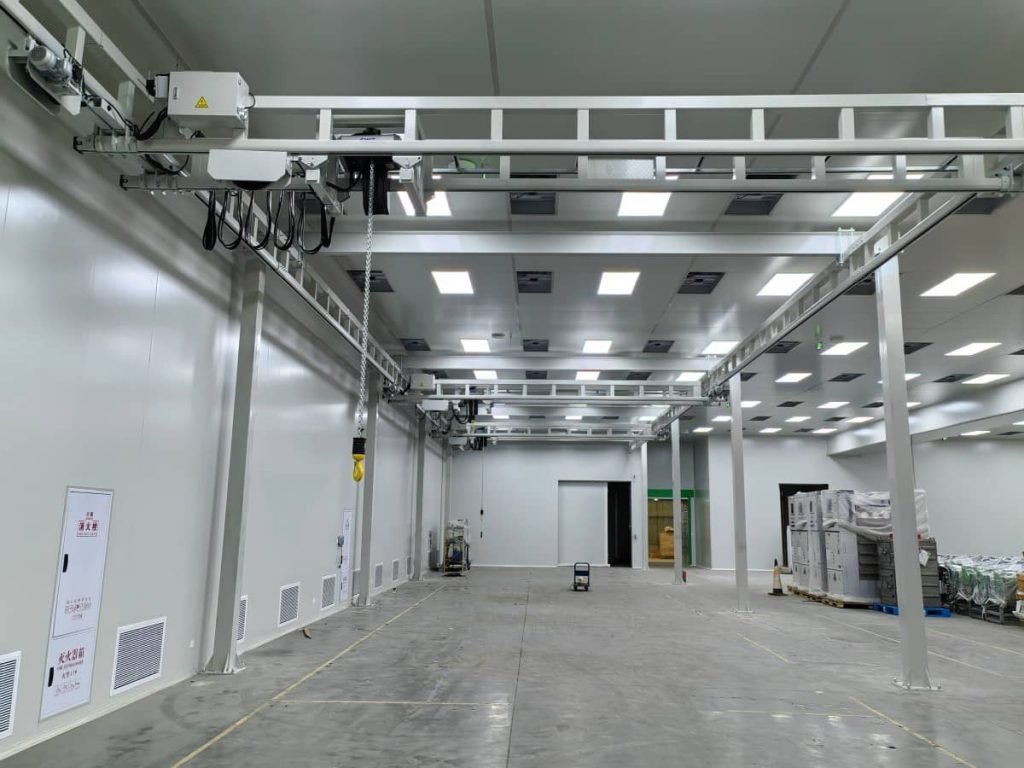

Système de grue légère KBK

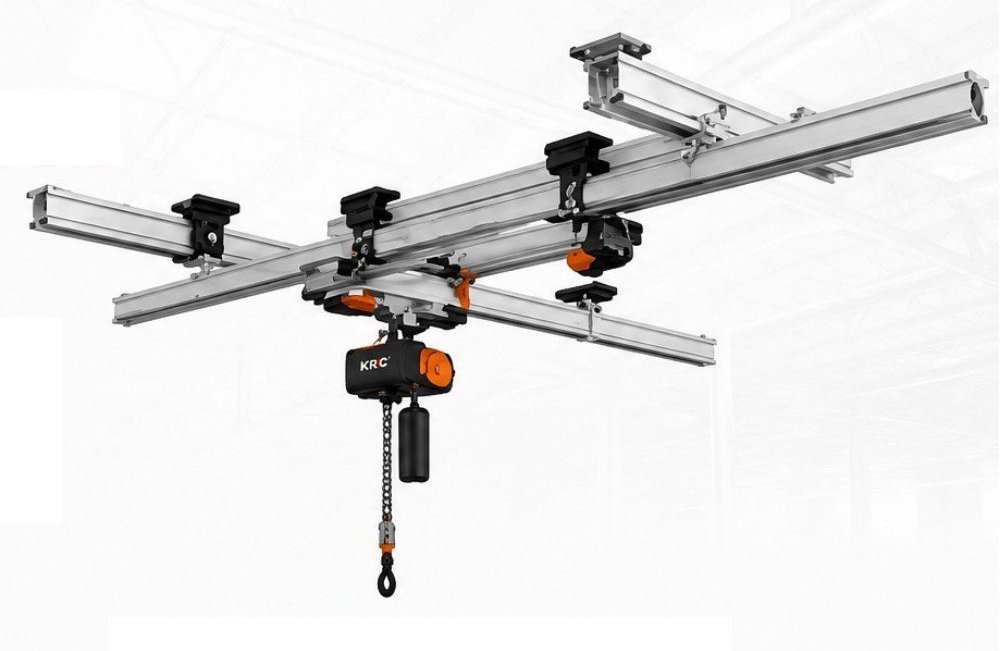

A KBK light crane system is a modular overhead handling system composed of tracks, suspension units, trolleys, bridges, hoists, end stops, power supply components, and safety devices.

Compared with traditional overhead cranes, KBK systems offer lower self-weight, easier installation, smoother movement, flexible layout options, and better adaptability for production line changes.

Modular Design

Flexible & Expandable

Smooth Movement

Low Rolling Resistance

Easy Expansion

Adapt to Production Changes

Reliable & Durable

Long Service Life

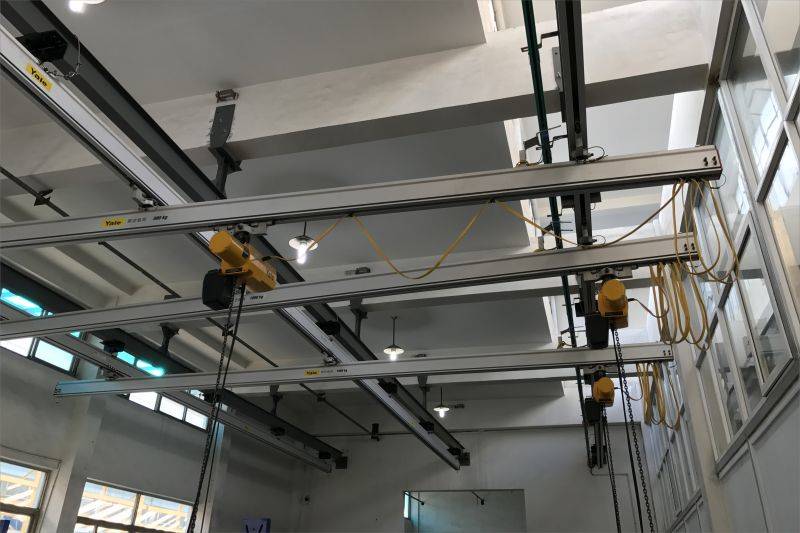

Système de grue sur rails en aluminium

Lightweight Aluminum Rail Crane System

The KRC aluminum alloy track system is designed for lightweight, ergonomic, and high-frequency workstation handling. Its enclosed aluminum profile provides low rolling resistance, quiet movement, and excellent corrosion resistance.

This system is ideal for assembly lines, electronics manufacturing, packaging stations, laboratories, clean workshops, and intelligent lifting applications.

Paramètre	Spécification
Capacité de levage maximale	Up to 2,000 kg
Max. Span	Up to 10 m
Rail Material	High-strength aluminum alloy
Résistance au roulement	Low friction, smooth movement
Applications	Light to medium-duty workstation handling

Principaux avantages

Lightweight aluminum enclosed rail
Low rolling resistance and smooth trolley movement
Corrosion-resistant structure
Reduced operator fatigue
Suitable for high-frequency handling
Compatible with electric chain hoists, intelligent hoists, and vacuum lifters

Systèmes de chenilles rigides

Rigid Track Crane System for Larger Span and Higher Capacity

The rigid track system is designed for applications requiring larger spans, higher load capacity, and stronger structural stability. Compared with flexible KBK systems, rigid track systems use reinforced main beams and rigid support structures to achieve better performance in heavy-duty workstation lifting.

This system is suitable for manufacturing workshops, automotive production lines, machining areas, logistics transfer zones, and workstations where roof suspension is limited or where larger coverage is required.

Principaux avantages

Suitable for larger span layouts
Higher structural rigidity
Reduced system deflection
Stable operation under frequent lifting conditions
Supports single-girder and double-girder configurations
Suitable for free-standing workstation crane systems

Paramètre	Spécification
Single Girder Capacity	Up to 2,000 kg
Double Girder Capacity	Up to 3,000 kg
Maximum Main Beam Length	Up to 12 m
Structure Type	Rigid steel main beam
Crane Configuration	Single girder / double girder
Applications	Automotive, logistics, heavy assembly, manufacturing

Flexible Steel KBK Track System

Modular Flexible KBK Rail System

The flexible steel KBK track system is suitable for frequent industrial material handling and modular workstation layouts. It can be installed on standard reinforced concrete floors and expanded as production cells change.

The system uses Q355B or optional Q355D steel, providing higher strength and better toughness than common Q235B steel.

Paramètre	Spécification
Capacité de levage maximale	Up to 2,000 kg
Max. Span	Up to 10 m
Rail Material	Q355B / Q355D steel
Installation Type	Ceiling-mounted or free-standing
Applications	Manufacturing, assembly, logistics, machining
