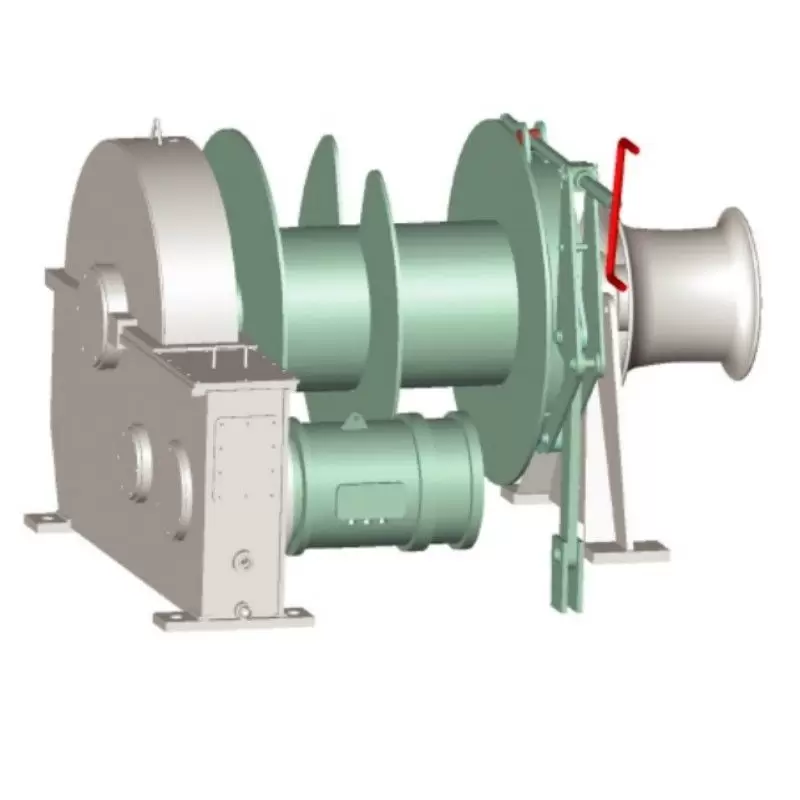

Electric Mooring Winch

Heavy-Duty Construction for Tough Environments

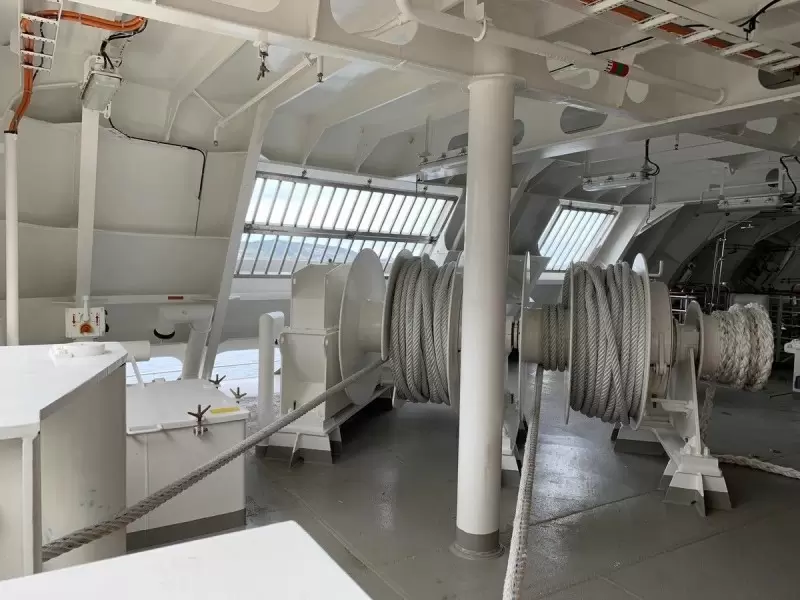

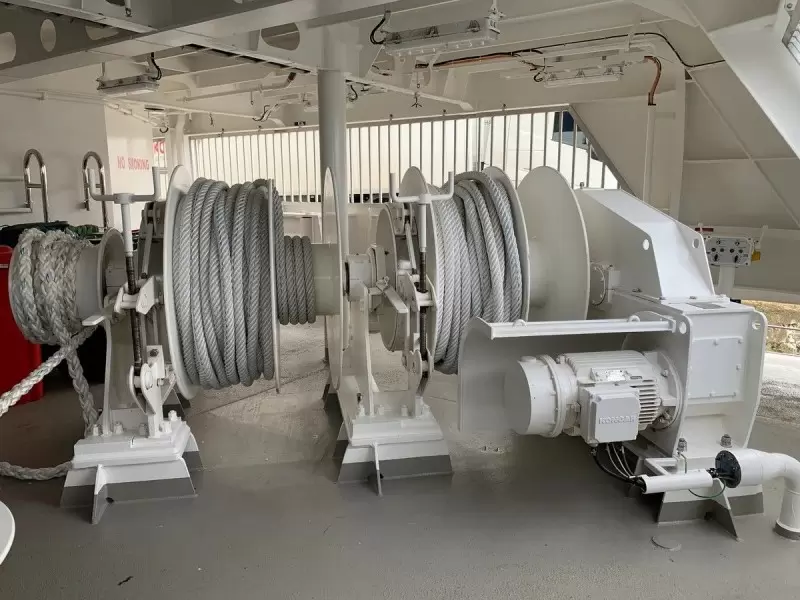

The KRC Electric Mooring Winch is built for demanding marine applications with a rugged design that ensures long-term durability. Equipped with heavy-duty split bronze bearings, this winch can handle high workloads with ease. Designed for vessel mooring and docking, it offers reliable performance in challenging conditions.

Flexible Control Options
This electric winch can be configured with both electric or hydraulic drive systems, providing flexibility depending on the specific requirements of your marine operation. Additionally, the clutch and band brake can be manually operated for local control or remotely operated via hydraulic cylinders, offering convenient and safe handling in various working environments.

Speed and Power for Efficiency
With a rated working load ranging from 50kN to 300kN, and a minimum speed of 15 m/min, this winch offers efficient mooring operations. For light loads, it achieves speeds of ≥30 or ≥45 m/min, enhancing productivity and enabling quick and reliable docking processes. It is available with power ranging from 22kW to 110kW, ensuring the winch can handle both small and large vessels with ease.

Enhanced Safety Features
Safety is a priority in the design of the KRC Electric Mooring Winch. The manual or hydraulic-operated clutch and band brake systems ensure safe operation during high-tension activities. The brakes are easily adjustable, making it simple to maintain control and secure the vessel. With an option for automatic tension control, the winch can automatically maintain a consistent tension on the mooring lines, preventing slack or over-tightening.

Optional Configurations for Versatility
The KRC Electric Mooring Winch can be customized to meet specific operational needs, with options for single or multi-drum configurations, local control via manual operation, or remote control for enhanced flexibility. For added versatility, it can also be configured with or without a warping end.
