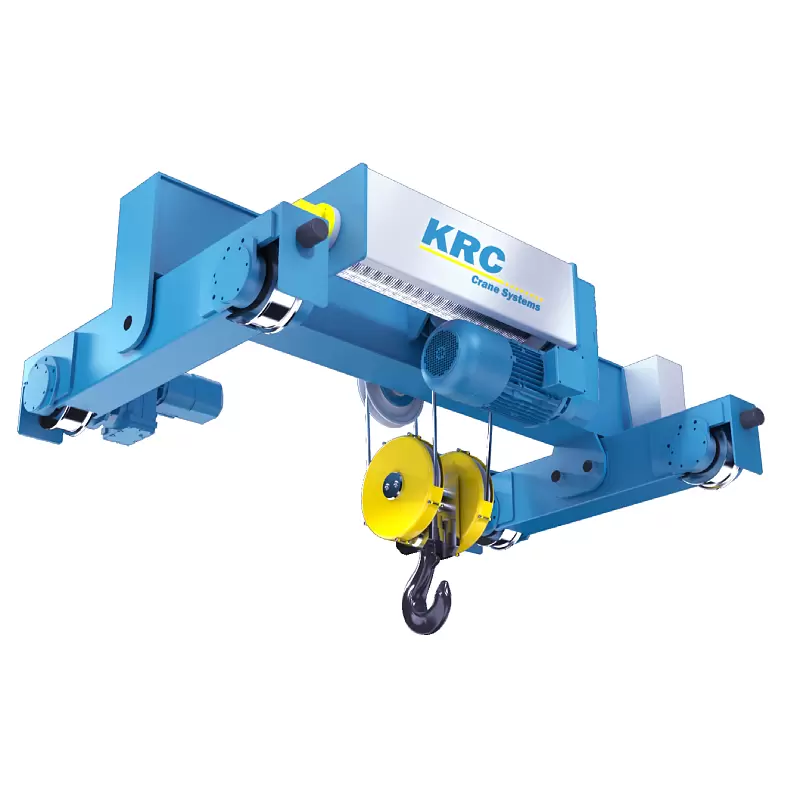

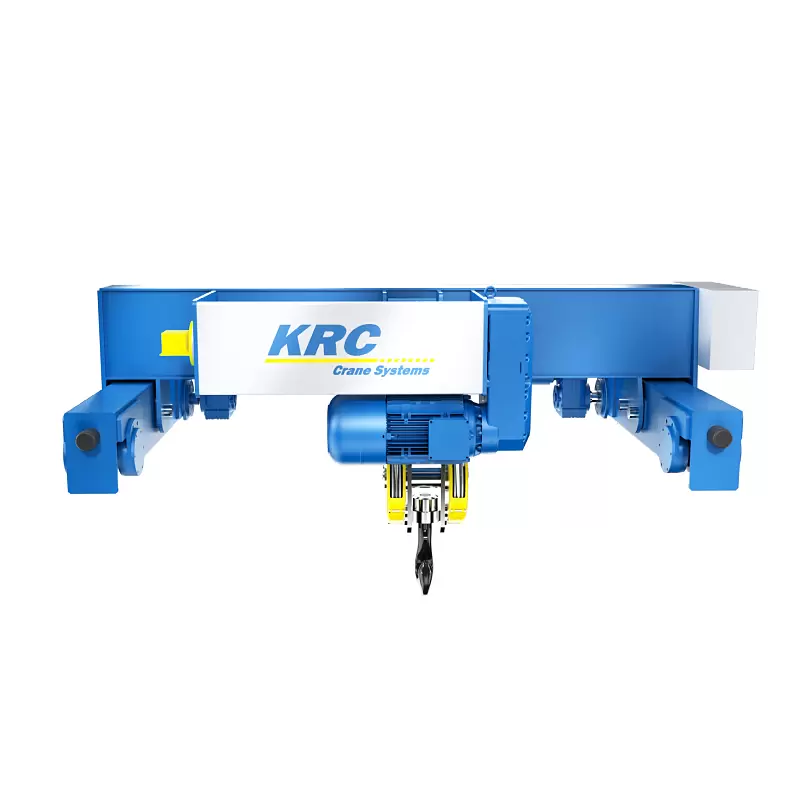

European Style Single/Double Beam Low Headroom Electric Wire Rope Lifting Hoist Construction

product name:Wire Rope Hoist
Model Number:KRC
Maximum Lifting Height:6-30m
Lift Speed:2-10m/min
Horizontal running speed:5/20m/min
Place of Origin:China
Customized support:OEM, ODM

Detailed Images

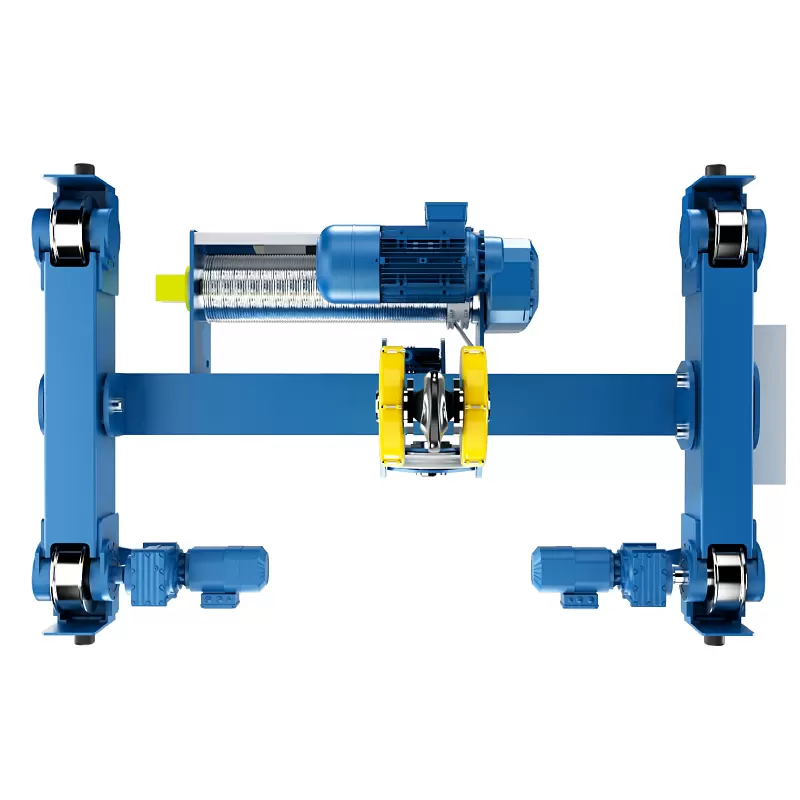

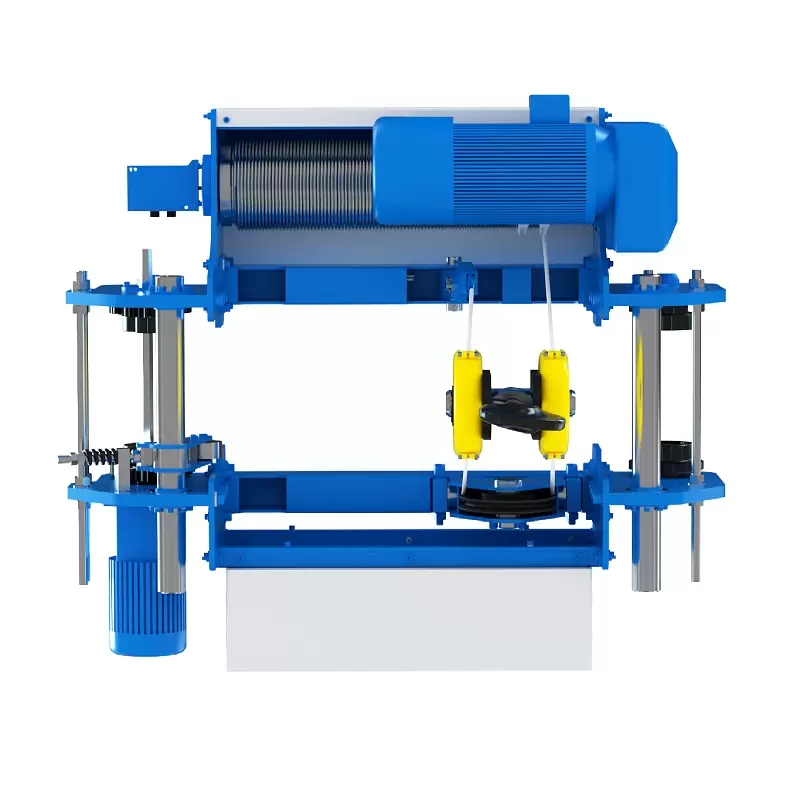

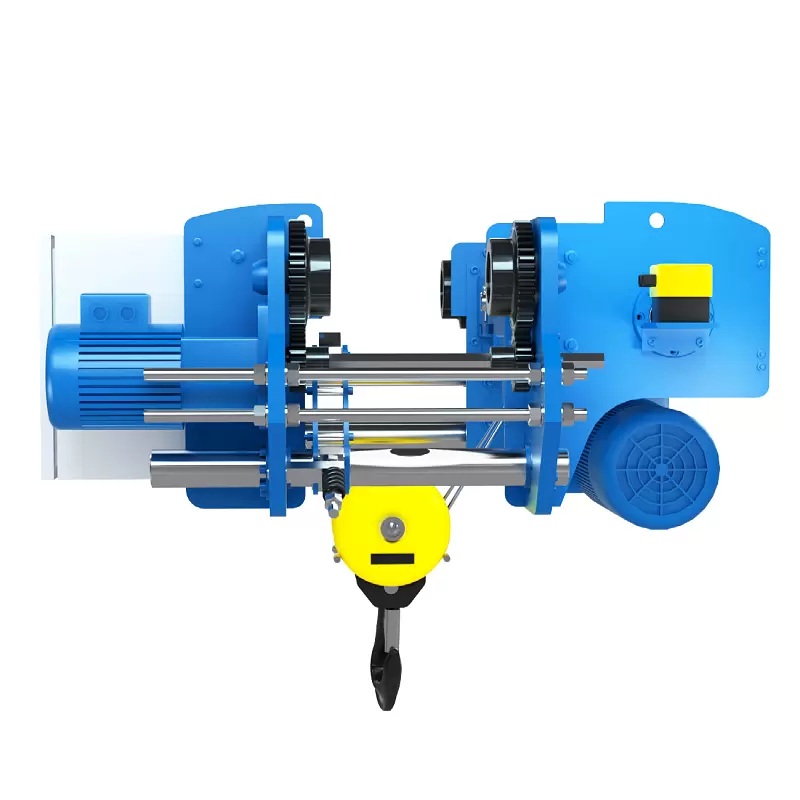

Product master drawing
Electric Wire Rope Lifting Hoist Construction2


1.Working pressures 4-6 bar.
2.Robust rotating piston motor has an adjustable spring pressure bra–ke that holds the load secure even in the event of air failure.
3.The standard, opil bath lubricated plantary gear box is particularlysmooth running and enables a low overall height.
4.High starting torque due to switching valves in the motor body.
5.Low noise mission due to large dimension silencer.
6.Sensitive control by means of 2 resp. 4 nutton pendant contro withemergency-stop.
7.Up to 3000kg only one chain fall, leading to a low overall height.
8.The 5-pocket load chain sheave, manufactured from wear resistantcase hardening steel, is matched perfectly to the load chain to guara–ntees smooth and precise chain motion.
9.Drop forged suspension and load hooks are made from non-aging,high tensile steel and fited with robust safety latches.
10.The standard case hardened and zinc-plated link chain is matchedperfectly to the load chain to guarantees smooth and precise chain m–otion.
All requirements of national and international standards and regulati–ons are fulfiled.

Product Description

KRC wire rope hoist is a small lifting equipment with the adva–ntages of compact structure,light weight,small volume, stro–ng universality of components, and easy operation. It can be installed separately on I-beams or used in conjunction with el–ectric or manual single beam, double beam, cantilever, gantry and other cranes.
Lifting weight (t) Model Work level Hoisting height Running speed  (m/min) H1(mm) C1(mm)
3.2t KR103.D 2m/M5 6、9、12 5/20 150 400
2m/M5 6、9、12 5/20
2m/M5 6、9、12 5/20
2m/M5 6、9、12 5/20
KR203.D 3m/M6 6、9、12、 5/20
3m/M6 6、9、12、 5/20
3m/M6 6、9、12、 5/20
3m/M6 6、9、12、 5/20

Please contact us for more detailed parameters

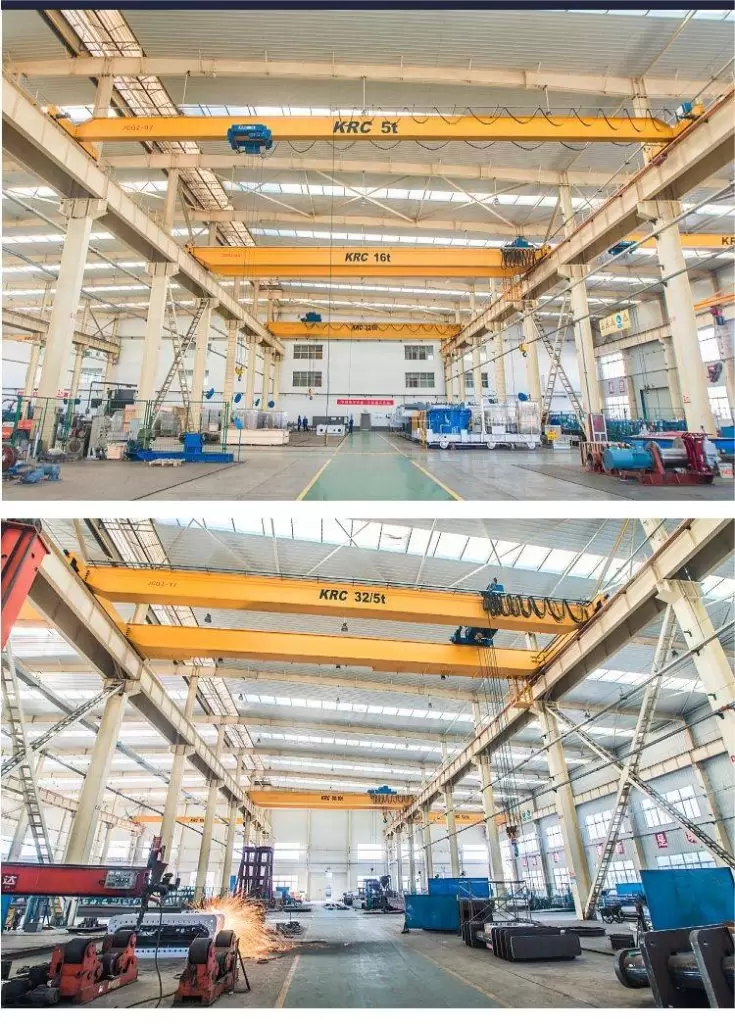

Product Application
