European & Standard Electric Wire Rope Hoists for Industrial Lifting
Wire Rope Hoists
KRC provides a full range of electric wire rope hoists, engineered for safe, efficient, and high-performance lifting across industrial applications.
Our portfolio is centered on European-style wire rope hoists (premium solution), complemented by CD/MD wire rope hoists (cost-effective standard solution), ensuring the right balance between performance and budget.
What is a Wire Rope Hoist?
A wire rope hoist is a powered lifting device that uses a steel wire rope wound around a drum to lift heavy loads. Compared with chain hoists, it is better suited for higher lifting heights, heavier capacities, and continuous-duty operations.
High lifting capacity and stability
Suitable for long lifting heights
Smooth and precise operation
Ideal for heavy-duty industrial environments
High-Performance Lifting Solutions for Industrial Applications

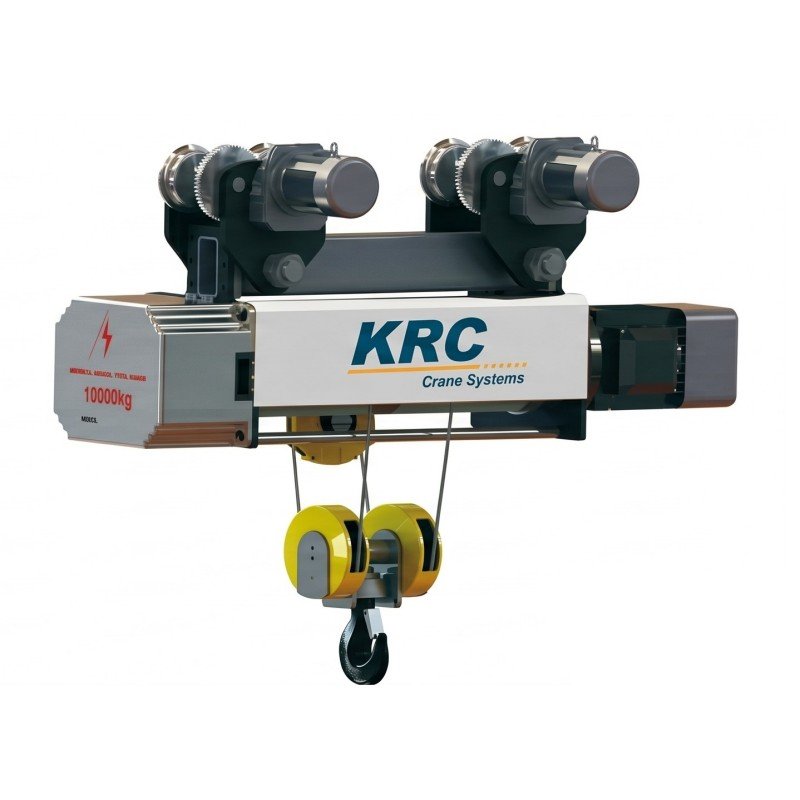

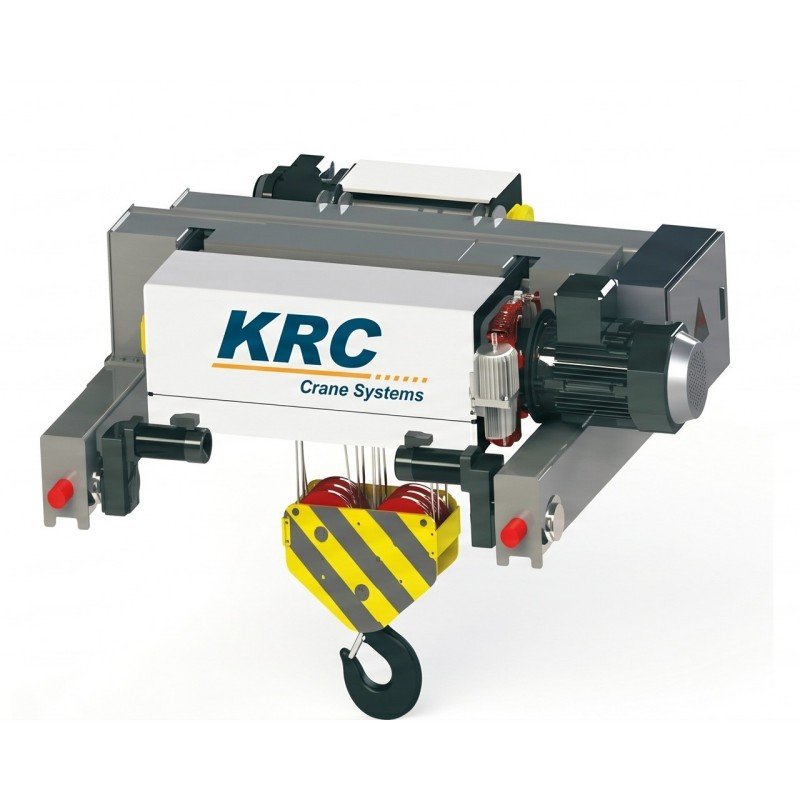

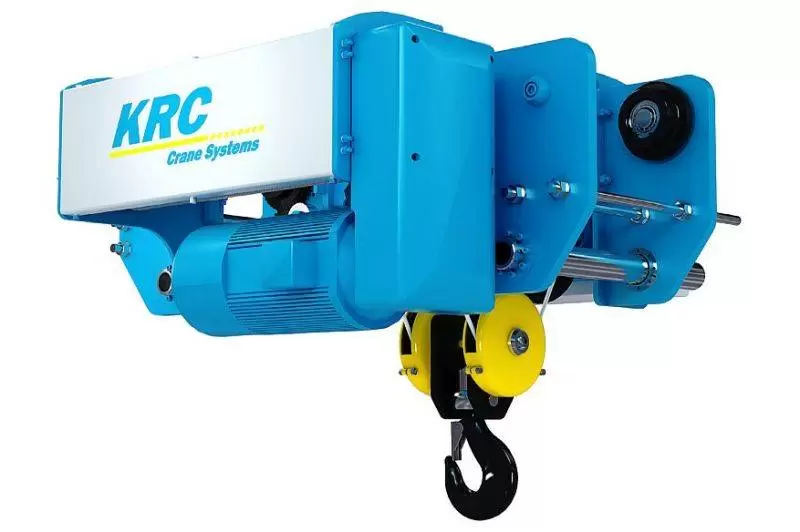

European Wire Rope Hoists
Our European-style wire rope hoists represent the latest generation of lifting systems, engineered with German-inspired technology and built in accordance with FEM/EN DIN standards. Featuring compact structure, intelligent control, and high energy efficiency, these hoists are designed to meet the demands of modern industrial applications.
Key Features
- FEM/EN DIN Compliant – Designed to European standards for safety and reliability
- Low-Headroom Design – Maximizes lifting height and space utilization
- VFD Precision Control – Smooth operation with accurate load positioning
- Premium Components – Equipped with SEM motors and Schneider Electric electrics
- Modular Configuration – Flexible integration across crane systems
- Flexible Speed Options – Dual-speed or stepless control available
Technical Capabilities
- Lifting Capacity: Up to 80T+ (customizable)
- Duty Class: FEM M1–M8
- Installation: Single girder, double girder, monorail
- Control Options: Pendant + wireless remote
Advantages
- Reduced energy consumption
- Lower maintenance costs
- Extended service life
- Ideal for automation and intelligent crane systems
Typical Applications
- Steel and heavy industries
- Automotive manufacturing
- Machinery production
- Logistics and warehousing
- High-frequency production lines

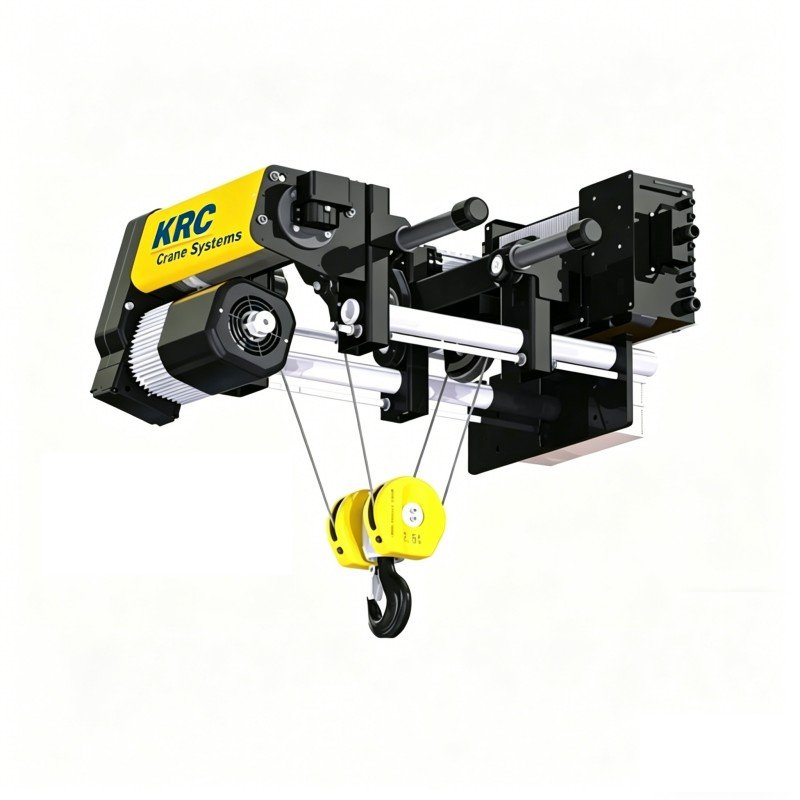

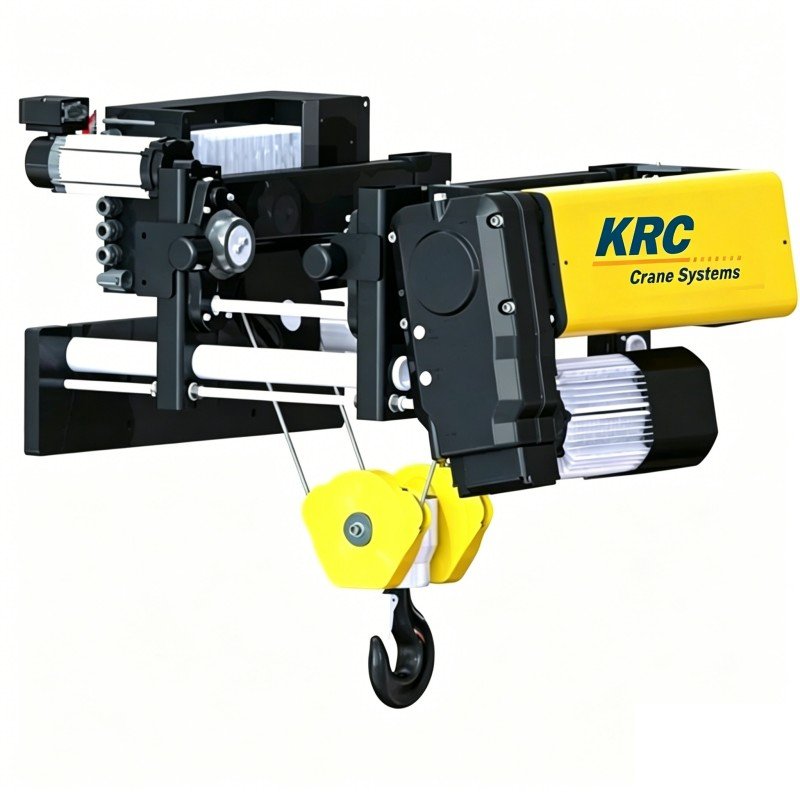

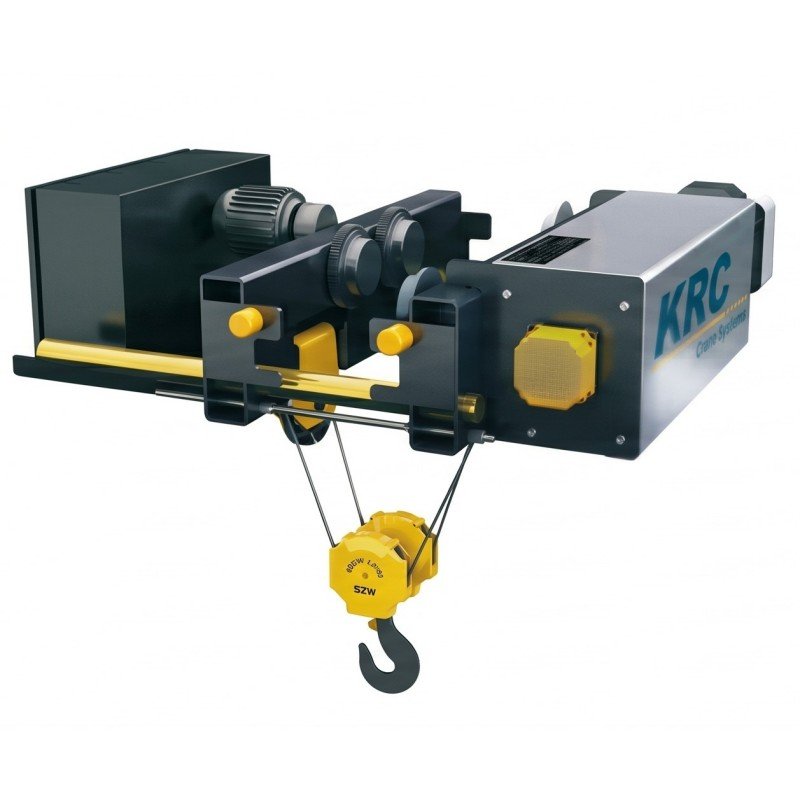

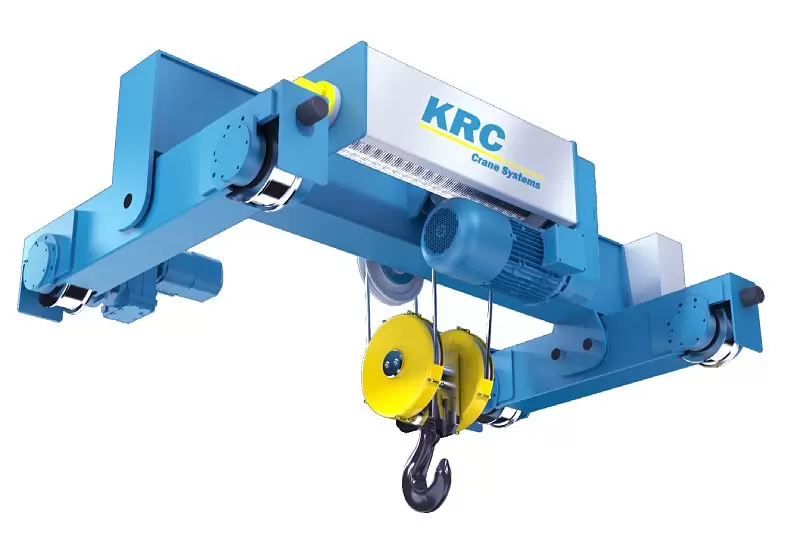

European-Style Wire Rope Hoists
Flagship Low-Headroom Hoists by KRC
Designed and manufactured entirely in-house, these European low-headroom wire rope hoists are built in compliance with FEM/DIN standards and represent the core of KRC’s high-end lifting technology. Combining compact structure, advanced control systems, and robust construction, they are ideal for modern crane systems requiring high efficiency, precision, and reliability.
Key Features
- Optimized low-headroom design for single girder systems
- Load capacity from 0.8t to 80t, lifting height up to 90m
- Standard VFD control for smooth acceleration and precise positioning
- Integrated safety system (overload, overheating, anti-drop)
- Built-in “Black Box” for real-time condition monitoring
Durability & Construction
- IP55 protection rating
- 60% ED duty cycle motor
- Epoxy zinc-rich anti-corrosion coating (~120μm)
- Lifetime-lubricated sealed gearbox
- 2160MPa high-strength galvanized wire rope
Core Benefits
- High operational stability
- Minimal downtime and maintenance
- Superior safety and monitoring capabilities
- Optimized for modern intelligent crane systems
Planetary Wire Rope Hoists
Compact Design with High Transmission Efficiency
This innovative hoist adopts planetary gear transmission, delivering compact structure, high torque, and smooth operation.
Key Specifications
- Capacity: 2t – 20t
- Lifting Height: 6m – 18m
- Lifting Speed: 5/0.8 m/min (optional VFD)
- Duty Class: M4–M5
Core Features
- Built-in planetary reducer for compact layout
- Dual-motor drive system
- Stable operation with low vibration
- Advanced rope guide for precise spooling
Component Advantages
- High-strength alloy hook (T-class)
- Carburized and hardened gears (20CrMoTi)
- High-durability drum and rope system
- Intelligent multifunction limiter system
Performance Highlights
- Smooth operation with minimal load swing
- High resistance to shock and heavy loads
- Low noise design
- Suitable for frequent start-stop operations
Applications
- Warehouses
- Manufacturing plants
- Mining and material yards
- Integrated crane systems

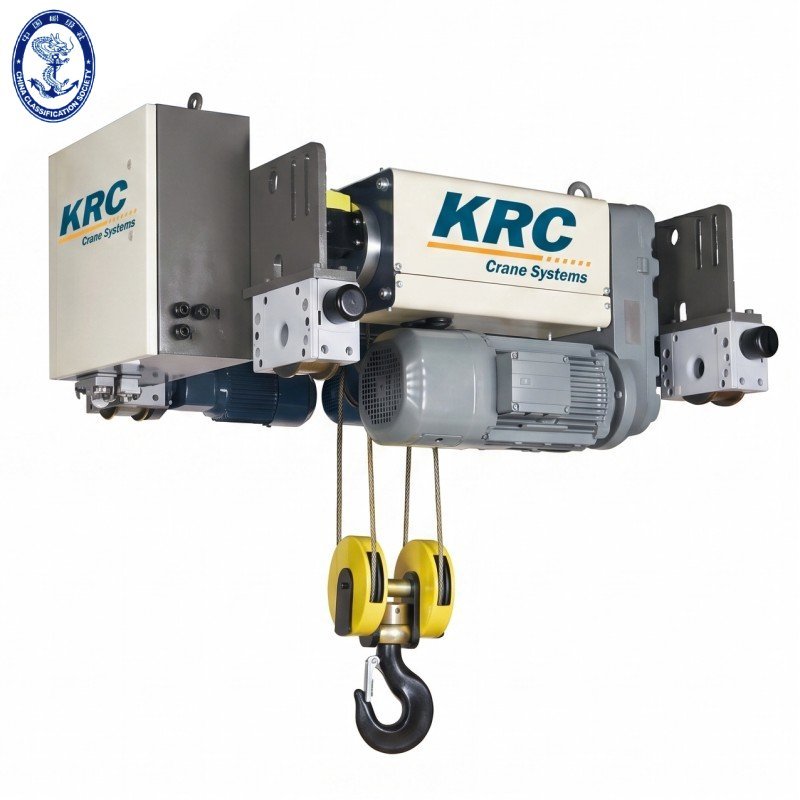

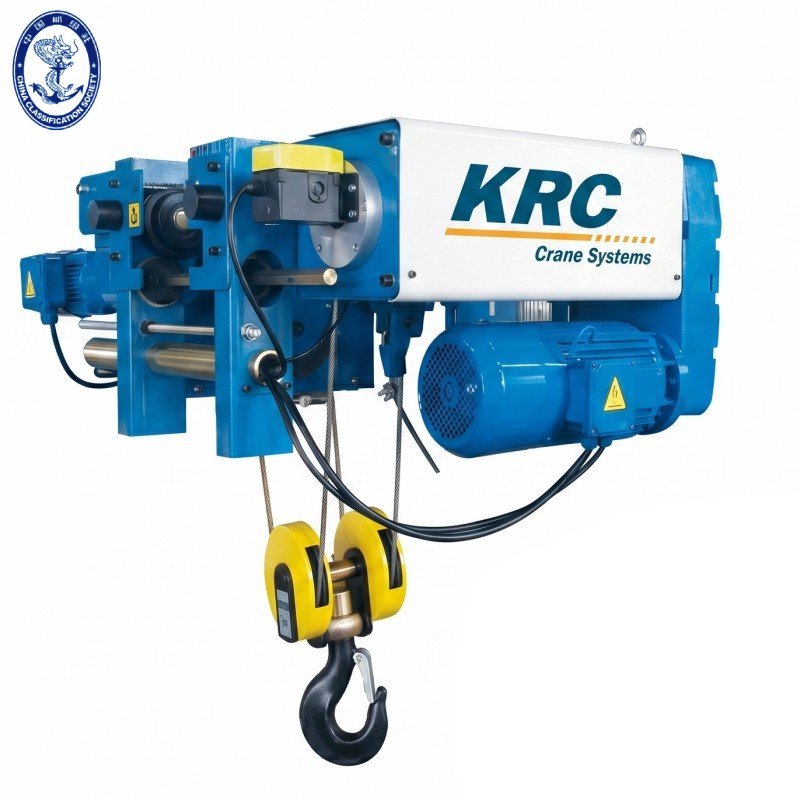

BMG Series European Wire Rope Hoists
Certified Performance for Marine & Industrial Use
The BMG series is a high-performance European hoist range certified by CCS, suitable for both industrial and marine environments.
Key Specifications
- Capacity: 3.2t – 50t
- Lifting Heights: 6m – 18m
- Duty Class: FEM M4–M6
- Double-speed or VFD lifting
Core Advantages
- Compact and lightweight structure
- Low wheel load and optimized design
- Modular components for easy maintenance
- High-efficiency transmission system
Performance & Safety
- Smooth operation with low impact and noise
- Brake lifespan exceeding 1 million cycles
- Real-time monitoring and protection system
- Energy-saving design for reduced operating cost
Certifications
- CCS (China Classification Society) certified

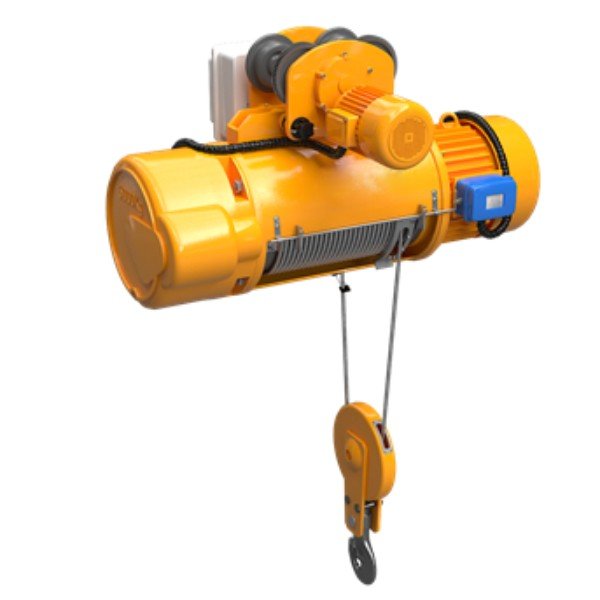

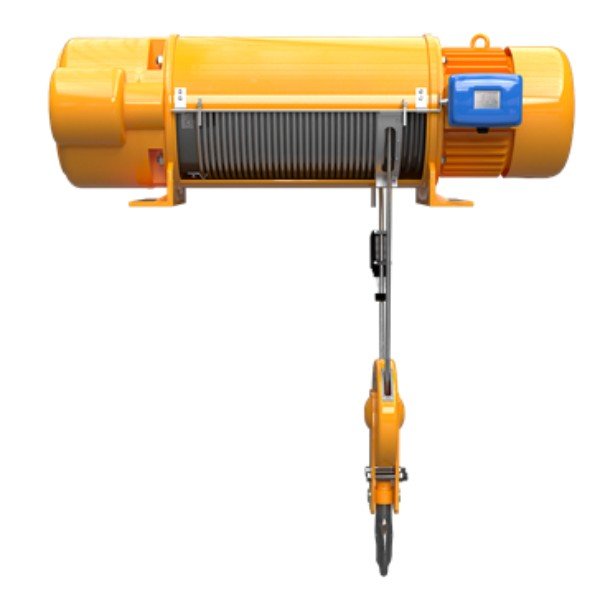

Standard Wire Rope Hoists (CD / MD Type)
Reliable and Cost-Effective Industrial Solutions
CD/MD hoists are traditional, widely adopted lifting solutions known for their simplicity, durability, and economic value.
Key Features
- Capacity: 0.5T – 32T
- CD Type: Single-speed lifting
- MD Type: Dual-speed lifting
- Robust mechanical structure
- Easy installation and maintenance
Advantages
- Cost-effective for standard applications
- Proven and mature design
- Easy access to spare parts
- Simple operation and servicing
Typical Applications
- Workshops and factories
- Warehouses
- Construction sites
- General industrial use
European vs Standard Wire Rope Hoist
Understanding the differences to choose the right hoist for your application
Ready to Upgrade Your Lifting Operations?
Get expert advice and competitive pricing for KRC European Wire Rope Hoists. Our engineering team is ready to help you select the optimal solution.
