JK Mining Hoist Winch: High Capacity Electric Hoisting Winch for Mines

The JK Mining Hoist Winch is engineered for efficient and safe lifting operations in coal, metal, and non-metal mines. Designed for both surface and underground use, this electric hoisting winch is ideal for vertical shafts and inclined tunnels, offering high capacity and reliable performance.

Video

Detailed Images

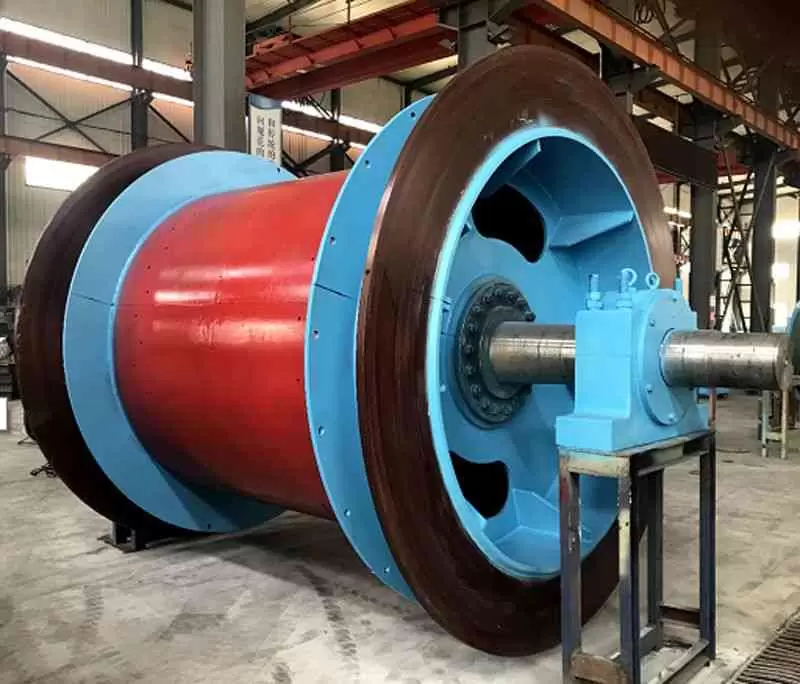

Mine Hoist System

Feature

  • Versatile Applications: Suitable for lifting materials and personnel in coal, metal, and non-metal mines.
  • High Capacity: Available in various models to handle different load capacities, ensuring efficient lifting operations.
  • Advanced Safety Features: Includes automatic overload protection and precise depth indication systems.
  • Durable Construction: Made from high-strength materials for enhanced durability and longevity.
  • Hydraulic and Electrical Controls: Provides precise speed regulation and secure braking.
  • Robust Main Shaft: Made from 45# carbon steel with high rigidity and safety.
  • Customizable Options: Tailored solutions available to meet specific operational needs.
  • Energy Efficient: Designed to optimize energy consumption, reducing operational costs.

Product Description

The JK Mining Hoist Winch is designed to meet the rigorous demands of lifting operations in mining environments. Whether it’s coal, metal, or non-metal mines, this hoist winch is built to handle heavy loads with precision and safety. It conforms to industry standards such as Q/HBWF003, AQ1035-2007, and GB/T20961-2007, ensuring compliance with safety and quality regulations.

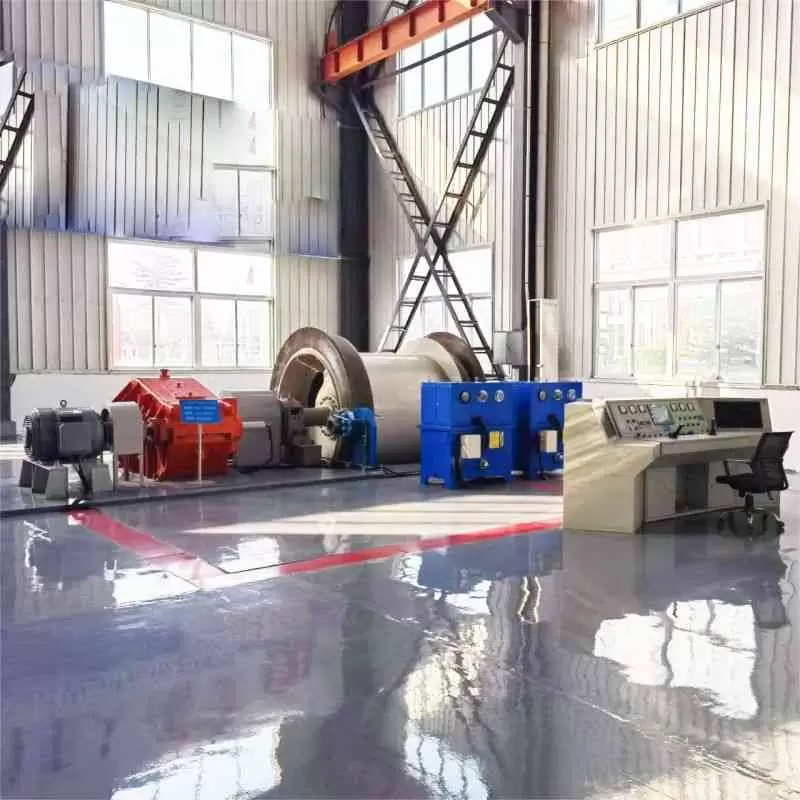

The winch operates using an electric motor that drives the drum through a gearbox, winding and unwinding the steel wire rope to lift and lower containers. The hydraulic and electrical controls enable precise speed adjustments, while the braking system ensures secure operation. The depth indication system provides accurate monitoring of the lifting depth, enhancing operational safety.

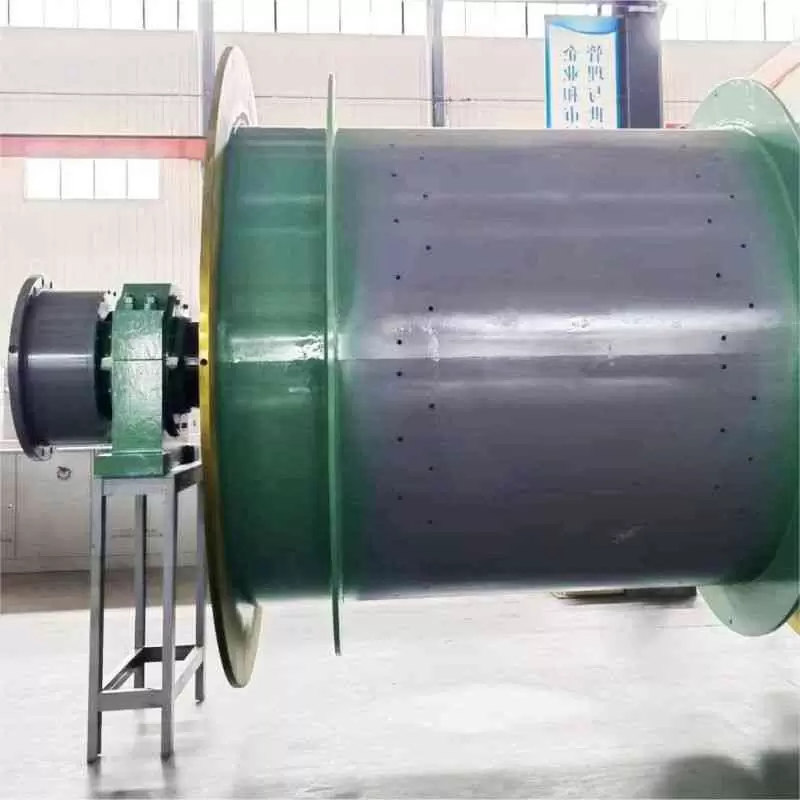

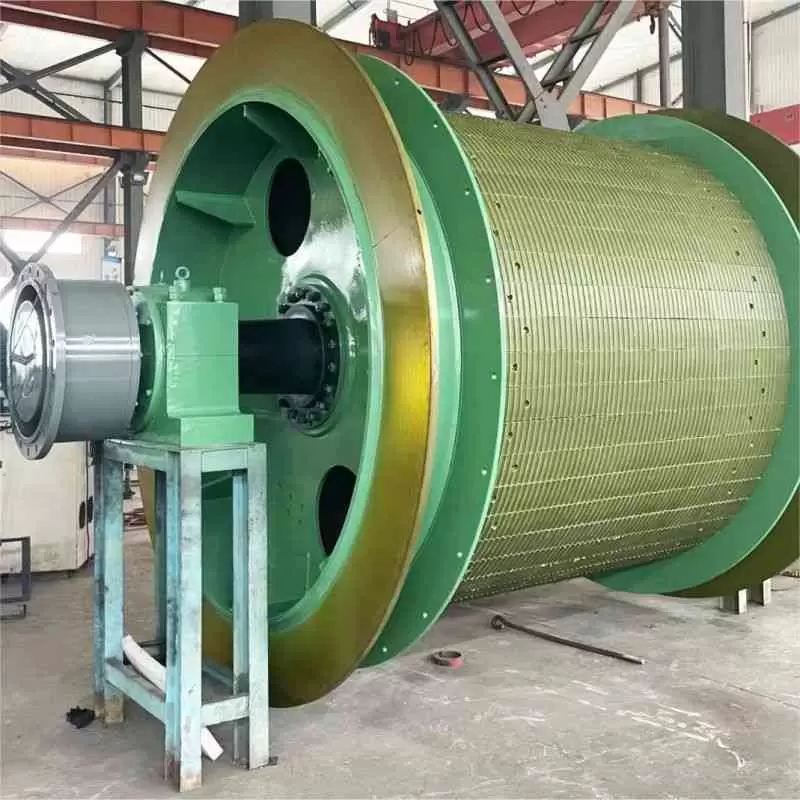

The main shaft, a critical component, is constructed from 45# carbon steel, forged and tested to ensure maximum strength and rigidity. This ensures that the winch can withstand the high torques and loads encountered during mining operations. The drum, made from low carbon alloy steel, is designed to dissipate stress and deformation effectively, enhancing its load-bearing capacity and fatigue resistance.

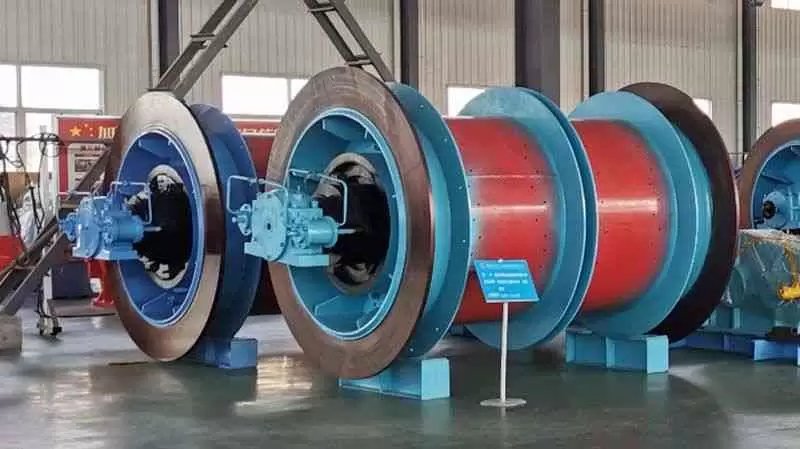

The JK series offers multiple drum configurations:

  1. Integral Welded Drum: Features a welded brake disc for maximum strength.
  2. Segmented Drum with Bolted Brake Disc: Allows for easy maintenance and replacement.
  3. Segmented Welded Drum: Available in two or four segments with bolted brake discs for flexible installation.

With hydraulic rope adjustment and various sensor-driven control systems, the JK Mining Hoist Winch ensures efficient and reliable lifting. This winch is suitable for vertical shafts and inclined tunnels, making it a versatile solution for various mining applications.

Contact us today to customize the JK Mining Hoist Winch to your specific needs and improve the efficiency and safety of your mining operations.

ModelDrum Diameter (mm)Load Capacity (KN)Lifting Height (m)Motor Power (KW)Speed (m/s)Dimensions (LxWxH) (m)Weight (Kg)
JK-2.0×1.51500332676252002.58.2×7.0x2.825200
JK-2.0×1.81800401815261003.28.5×7.0x2.826100
JK-2.0×2.02000445903270005.18.8×7.0x2.827000
JK-2.5×2.02000447911380003.110.3×9.0x3.038000
JK-3.0×2.222005601034570003.712.5×11.0x3.557000
JK-3.5×2.828006481318850005.414.5×11.0x4.085000

Please contact us for more detailed parameters
