European & Standard Electric Wire Rope Hoists for Industrial Lifting

palans à câble métallique

KRC provides a full range of electric wire rope hoists, engineered for safe, efficient, and high-performance lifting across industrial applications.
Our portfolio is centered on European-style wire rope hoists (premium solution), complemented by CD/MD wire rope hoists (cost-effective standard solution), ensuring the right balance between performance and budget.

What is a Wire Rope Hoist?

UN palan à câble métallique is a powered lifting device that uses a steel wire rope wound around a drum to lift heavy loads. Compared with chain hoists, it is better suited for higher lifting heights, heavier capacities, and continuous-duty operations.

High lifting capacity and stability

Suitable for long lifting heights

Smooth and precise operation

Ideal for heavy-duty industrial environments

Explore the Portable Smart Series

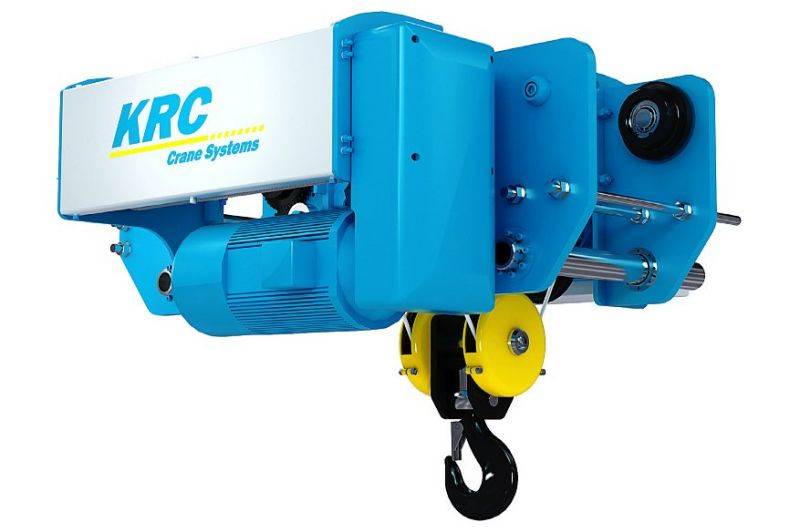

Palans à câble européen KRC
Palans à câble européen KRC

European Wire Rope Hoists

Our European-style electric wire rope hoists represent the latest generation of lifting technology, designed for high efficiency, compact structure, and precise control.

Caractéristiques principales

  • Compact low-headroom design
    Maximizes lifting height and optimizes workshop space utilization
  • Variable frequency drive (VFD) control
    Smooth starting, stopping, and precise load positioning
  • High-performance motor & gearbox
    Energy-efficient operation with reduced noise and wear
  • Modular design
    Flexible configuration for different crane systems and applications
  • Dual-speed or stepless speed control
    Suitable for precise handling and sensitive loads

Technical Capabilities

  • Lifting capacity: Up to 80T+ (customizable)
  • Working class: FEM standard (M5–M7)
  • Control: Pendant + wireless remote optional
  • Installation:
    • Grue monopoutre
    • Grue bipoutre
    • Monorail systems

Advantages

  • Higher efficiency and lower energy consumption
  • Reduced maintenance costs
  • Longer service life
  • Ideal for automation and intelligent crane systems

Applications typiques

  • Steel and heavy industry
  • Automotive manufacturing
  • Machinery production
  • Logistics and warehouses
  • High-frequency production lines

Single Girder Hoist Specifications

Capacité (T) Modèle Niveau de travail Lift Height (m) Hoisting Speed (m/min) Vitesse de course (m/min)
1 KR101.E 4m/M7 6, 9, 12 0.5/3 ~ 1.4/8.5 5-20
2 KR102.E 4m/M7 6, 9, 12 0.5/3 ~ 1.4/8.5 5-20
3.2 KR103.E / KR203.E 2m/M5 ~ 3m/M6 6, 9, 12, 15 0.5/3.3 ~ 1/6 5-20
5 KR205.E / KR305.E 2m/M5 ~ 4m/M7 6, 9, 12, 15, 18 0.7/4 ~ 1.3/7.8 5-20
10 KR310.E / KR410.E 1m/M4 ~ 3m/M6 6, 9, 12, 15, 18 0.7/4 ~ 1.3/8 5-20
16 KR416.E 2m/M5 6, 9, 12, 15, 18 0.7/4 ~ 0.8/5 5-20

Double Girder Hoist Specifications

Capacité (T) Modèle Niveau de travail Lift Height (m) Hoisting Speed (m/min) Vitesse de course (m/min)
5 KR205.D / KR305.D 2m/M5 ~ 4m/M7 6, 9, 12, 15, 18 0.7/4 ~ 1.3/7.8 5-20
10 KR310.D / KR410.D 1m/M4 ~ 3m/M6 6, 9, 12, 15, 18 0.7/4 ~ 1.3/8 5-20
20 KR420.D / KR520.D 2m/M5 ~ 3m/M6 6, 9, 12, 15, 18 0.6/4 ~ 1.2/5 5-20
32 KR532.DP / KR432.Z 1m/M4 ~ 3m/M6 6, 9, 12 0.6/4 ~ 1.2/6 5-20
50 KR550.D / KR550.ZP 1m/M4 ~ 2m/M5 6, 9, 12 0.8/4 ~ 1.2/6 5-20
80 KR580.ZP 1m/M4 6, 9, 12 0.9/4.5 ~ 1/5 5-20

Standard Wire Rope Hoists (CD / MD Type)

Le CD/MD wire rope hoists are traditional industrial lifting solutions, widely used for general-purpose applications where cost-efficiency and reliability are key priorities.

Caractéristiques principales

  • Capacité: 0.5T – 32T
  • CD Type: Single-speed lifting
  • MD Type: Dual-speed lifting
  • Simple and robust mechanical structure
  • Easy installation and maintenance
  • Proven performance across global markets
Palan électrique à câble monorail
Palan antidéflagrant M4

Advantages

  • Economical solution for standard lifting tasks
  • Mature and reliable design
  • Easy to maintain with widely available spare parts

Applications typiques

  • Workshops and factories
  • Warehouses and storage facilities
  • Construction and general industry

European vs Standard Wire Rope Hoist

Understanding the differences to choose the right hoist for your application

Fonctionnalité
European Hoist
Standard (CD/MD)
Design Structure
Compact, Low Headroom
Traditional
Speed Control
VFD (Stepless)
Single/Dual Speed
Positioning Accuracy
High Precision
Standard
Niveau de bruit
Faible
Standard
Entretien
Minimal
Regular
Self Weight
Lighter
Heavier
Initial Investment
Higher
Lower
Operating Cost
Lower (Long-term)
Standard
Idéal pour
High-precision, frequent use
General applications

Ready to Upgrade Your Lifting Operations?

Get expert advice and competitive pricing for KRC European Wire Rope Hoists. Our engineering team is ready to help you select the optimal solution.
