Detailed Images
Feature
1. Explosion-Proof Certification
ATEX/IECEx compliance for Zones 1, 21, 22
All components modified for gas/dust hazards
Optional stainless steel chains for corrosive environments
2. Advanced Engineering
Dual-speed control (8/2 m/min) with IP65 pendant
Open-access electromagnetic brakes
Manual release option for emergency operations
Overload protection + mechanical emergency limit switches
3. Durability Innovations
Large-diameter sprocket design
Reduces chain wear by 40%
Hardened zinc-plated chains (FEM Grade)
Cast steel guide chain system
4. Customization Capabilities
Dual-hoist systems & multi-point lifting
STB Big Bag handling configurations
Zinc/bronze/copper hook options
Product Description

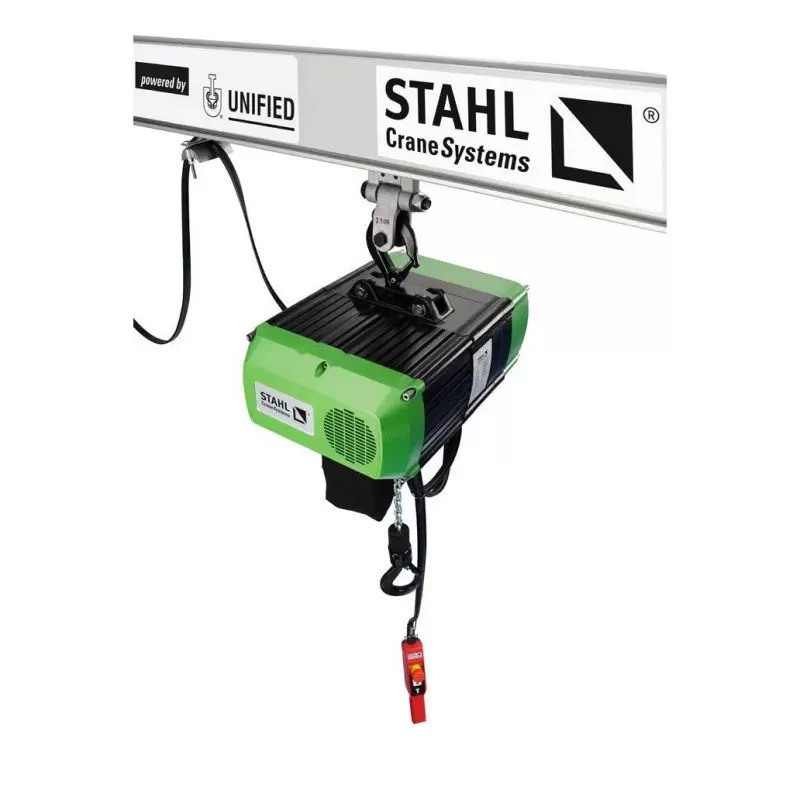

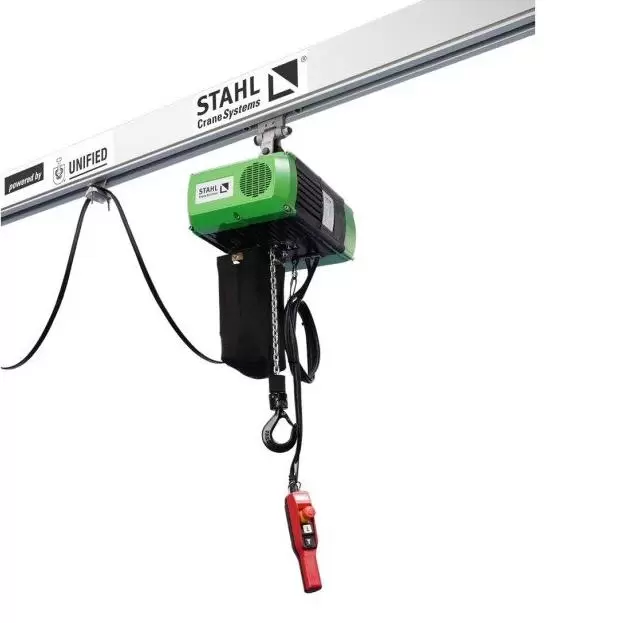

The Columbus McKinnon STAHL® SK Series redefines industrial lifting with its modular, explosion-proof design engineered for extreme environments. As one of the industry’s most adaptable hoists, it combines ATEX/IECEx Zone 1/21/22 certification with Columbus McKinnon’s 140+ years of lifting expertise to deliver unmatched safety in chemical plants, mining, and oil/gas facilities.
Core innovations include a patented chain guide system for reduced wear, dual-speed control via IP65-rated pendants, and electromagnetic brakes with visible safety indicators. The hoist’s open-architecture design allows rapid maintenance, while its FEM-compliant load chains ensure longevity under high-duty cycles.
Customization is integral to the SK Series:
Explosion-Proof Engineering: All components modified for gas/dust hazards.
Application-Specific Configurations: Dual-hoist systems, coupling hoists for multi-point lifts, or STB Big Bag variants.
Global Support: Localized production ensures fast delivery of bespoke solutions.
For operations demanding zero compromises in safety or flexibility, the SK Series delivers future-proof performance backed by IEC 60079 quality certification.
| Rated Load (kg) | Model | Lifting Speed (m/min) | Motor Power 50Hz (kW) | Duty Cycle 50Hz (%ED) | Starts per Hour 50Hz (c/h) | Self-Weight for 3m Lift Height (kg) |
|---|---|---|---|---|---|---|
| 250 | SK0502-8/2 1/1 | 8/2 | 0.75/0.18 | 33/17 | 300 | 27 |
| 400 | SK0504-8/2 1/1 | 8/2 | 0.75/0.18 | 33/17 | 240 | 27 |
| 500 | SK0505-8/2 1/1 | 8/2 | 0.75/0.18 | 33/17 | 180 | 27 |
| 500 | SK1002-8/2 2/1 | 4/1 | 0.75/0.18 | 33/17 | 300 | 29 |
| 500 | SK1005-8/2 1/1 | 8/2 | 1.5/0.37 | 33/17 | 300 | 60 |
| 630 | SK1003-8/2 2/1 | 4/1 | 0.75/0.18 | 33/17 | 300 | 29 |
| 630 | SK1006-8/2 1/1 | 8/2 | 1.5/0.37 | 33/17 | 300 | 60 |
| 800 | SK1004-8/2 2/1 | 4/1 | 0.75/0.18 | 33/17 | 240 | 29 |
| 800 | SK1008-8/2 1/1 | 8/2 | 1.5/0.37 | 33/17 | 240 | 60 |
| 1000 | SK1005-8/2 2/1 | 4/1 | 0.75/0.18 | 33/17 | 180 | 29 |
| 1000 | SK1010-8/2 1/1 | 8/2 | 1.5/0.37 | 33/17 | 180 | 60 |
| 1000 | SK2005-8/2 2/1 | 4/1 | 1.5/0.37 | 33/17 | 300 | 65 |
| 2000 | SK2010-8/2 2/1 | 4/1 | 1.5/0.37 | 33/17 | 180 | 65 |
Please contact us for more detailed parameters
